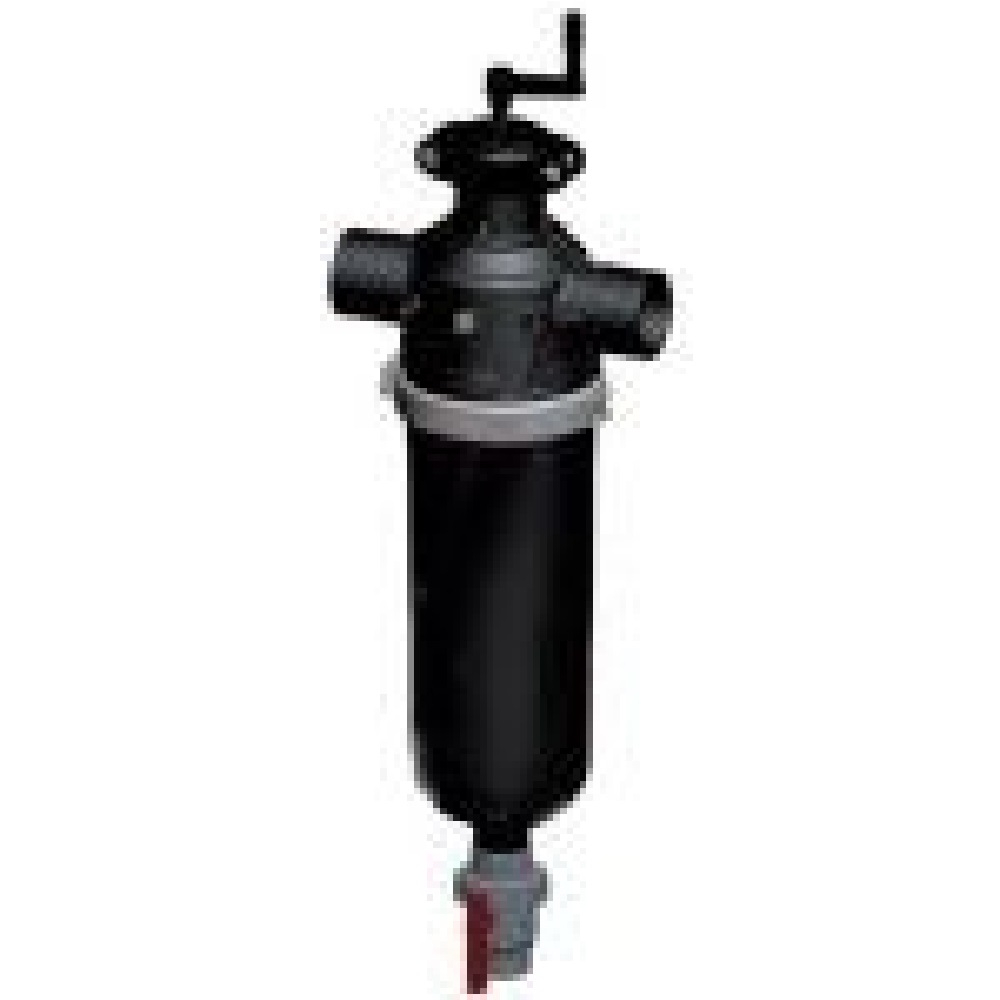

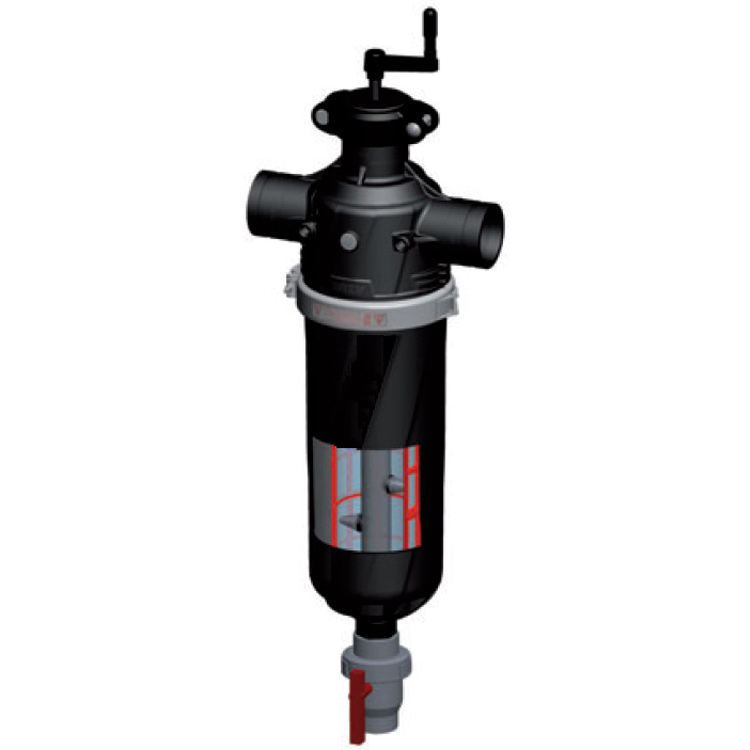

Semi automatic spiral clean filter

Semi automatic spiral clean filter

The semi automatic spiro clean filter is a highly economic filter solution. This filter is very versatile and is useful in a broad range of water filtering needs. The self cleaning function is very easy to perform and cleaning is without interruption of the filtering process. You can install this filter in-line. The filter has a weave wire mesh screen with a large surface area which is available in several filtration degrees. The maximum pressure is 10 bar and the maximum temperature is 60°C.

Advantages:
– Large filter surface
– 100% effective cleaning of filter surface

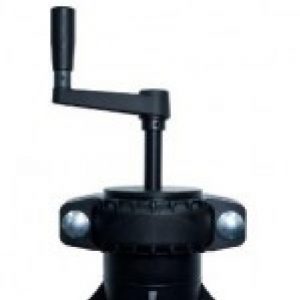

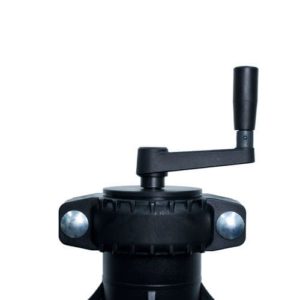

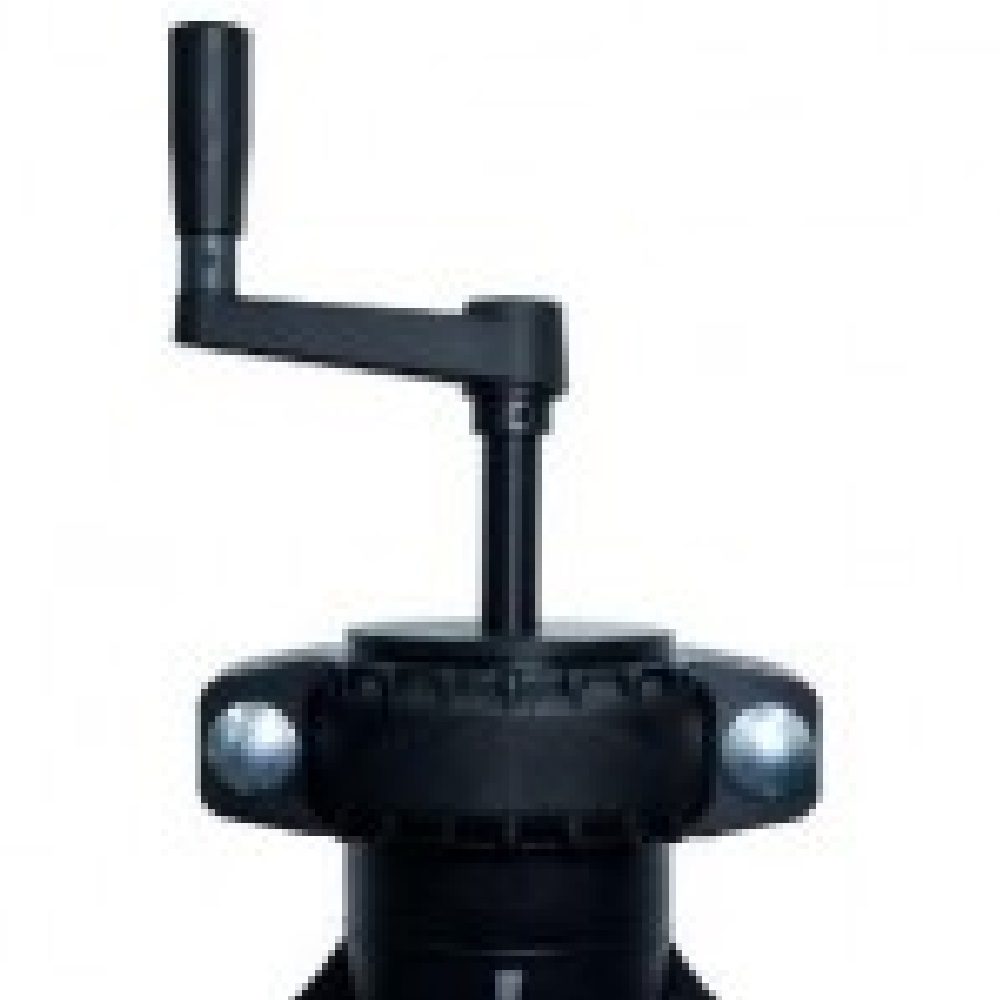

– Easy to clean by manually operating the self cleaning mechanism
– Cleaning without opening the filter
– Filter continuous filtration during cleaning cycle
– Little maintenance and no tools needed.
– No moving parts that are subject to wear and tear
– Simple construction with a minium of parts
– Constructed from high quality glass fibre reinforced industrial plastic
– Water saving and no energy consumption.

This filter can be cleaned during the filtration process without interruption of the filtered flow and without opening the filter. The whole cleaning cycle takes up no more than 10 seconds and uses a minimum of water. This filter is equipped with a clogging indicator clearly showing when cleaning is necessary.

Versions:
– In-line
– 2 Inch, 2 Inch Super, 3 Inch compact en 3 Inch. With flow rates up to 50 m³/hr
